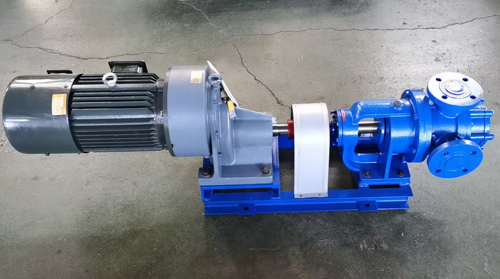

NYP型內環式高粘度泵
- 簡介：● 概述 NYP型內環式高粘度泵是根據石油、化工、涂料、油脂、醫藥、染料、食品等行業的需求，研制開發的新型容積式泵，由于該產品可選用不同的材質和其獨特的結構，因此廣泛應用于不同性質，不同粘度的介質輸送。 適用介質溫度：-10℃ —200℃（NYPO.78和NYP2
產品詳細
● 概述
NYP型內環式高粘度泵是根據石油、化工、涂料、油脂、醫藥、染料、食品等行業的需求，研制開發的新型容積式泵，由于該產品可選用不同的材質和其獨特的結構，因此廣泛應用于不同性質，不同粘度的介質輸送。
適用介質溫度：-10℃ —200℃（NYPO.78和NYP2.3的適用溫度為-10℃ —80℃)。
適用介質粘度：1.0cSt—300,000cSt(NYPO.78和NYP2.3的適用粘度為1.0cSt—10,000cSt）。
● 優點
（1）輸送液體平穩，無脈動，振動小，噪音低。
（2）有很強的自吸性能。
（3）正確選用零件材料，可輸送多種有腐蝕性的介質，使用溫度可200℃。
（4）內外轉子轉向相同，磨損小，使用壽命長。
（5）泵的轉速與流量呈線性函數關系，可適當改變轉還來改變泵的流量。
（6）特別適用高粘度泵稠度介質的輸送。
NYP型內環式高粘度泵符號含義
| NYP | 7.0 | A |
| 內齒輪 | 理論排量L/100r | 改進設計順序號 |
性能參數表
型號 |
通徑mm |
理論排量 L/100rev |
粘度 cSt |
轉速 r/min |
壓差(MPa) |
連接形式 | |||
0.4 |
0.6 |
0.8 |
1.0 | ||||||
軸功率(kw)流量(L/min) | |||||||||
NYP0.78 |
15 |
0.78 |
20 |
1390 |
0.17/9.3 |
0.23/9.0 |
0.28/8.8 |
0.32/8.6 | G1/2" |
60 |
1390 |
0.18/9.5 |
0.24/9.2 |
0.28/9.0 |
0.33/8.9 | ||||
200 |
1390 |
0.31/10.4 |
0.35/10.2 |
0.39/10.0 |
0.43/9.9 | ||||
600 |
1390 |
0.39/10.4 |
0.44/10.3 |
0.48/10.3 |
0.52/10.2 | ||||
2000 |
910 |
0.23/6.8 |
0.27/6.8 |
0.30/6.8 |
0.33/6.7 | ||||
6000 |
720 |
0.24/5.4 |
0.31/6.1 |
0.30/6.8 |
0.40/6.8 | ||||
NYP2.3 |
25 |
2.3 |
20 |
1400 |
0.38/28.4 |
0.49/27.5 |
G1" | ||
60 |
1400 |
0.59/29.2 |
0.65/28.8 | ||||||
200 |
1400 |
0.61/30.0 |
0.72/29.6 | ||||||
600 |
1400 |
0.92/31.9 |
0.96/31.7 | ||||||
2000 |
910 |
0.61/19.9 |
0.68/19.7 | ||||||
6000 |
720 |
0.77/16.32 |
0.83/16.2 | ||||||
NYP3.6 |
40 |
3.6 |
20 |
1450 |
0.69/46.7 |
0.94/45.9 |
1.18/45 |
1.44/43.4 |
法蘭 Flange |
60 |
1450 |
0.81/47.5 |
1.09/46.7 |
1.37/45.9 |
1.57/44.7 | ||||
200 |
1450 |
1.06/49.7 |
1.31/49.2 |
1.56/48.8 |
1.79/47.3 | ||||
600 |
1450 |
1.45/49.9 |
1.61/49.6 |
1.77/49.3 |
1.93/49 | ||||
2000 |
960 |
1.28/34.3 |
1.41/33.8 |
1.54/33.7 |
1.65/33.6 | ||||
6000 |
640 |
1.08/23.0 |
1.18/22.9 |
1.28/22.9 |
1.37/22.8 | ||||
20000 |
583 |
1.22/20.5 |
1.24/20.4 |
1.25/20.4 |
1.38/20.3 | ||||
60000 |
455 |
0.84/16.3 |
0.91/16.2 |
0.98/16.1 |
1.01/16 | ||||
NYP7.0 NYP7.0A (原型號: NYP3 NYP3A) |
40 |
7.0 |
20 |
1450 |
1.36/98.1 |
1.8/96 |
2.0/94.7 |
2.4/93 |
螺紋 Thread
|
60 |
1450 |
1.45/99 |
1.9/97 |
2.2/96.4 |
2.6/95 | ||||
200 |
1450 |
1.62/99.8 |
2.0/98 |
2.3/97.5 |
2.7/97 | ||||
600 |
960 |
1.4/62 |
1.6/65 |
1.8/44 |
2.0/64 | ||||
2000 |
960 |
1.8/67 |
2.0/66 |
2.3/65 |
2.6/65 | ||||
6000 |
640 |
1.5/44.5 |
1.7/44 |
1.8/44 |
2.0/44 | ||||
20000 |
583 |
1.6/40.5 |
1.9/40 |
2.1/40 |
2.2/40 | ||||
60000 |
455 |
1.46/31.5 |
1.8/31 |
1.9/31 |
2.0/31 | ||||
NYP24 | 50 | 24 |
20 |
720 |
1.8/165 |
2.3/161 |
2.8/158 |
3.4/155 |
法蘭 Flange |
60 |
720 |
2.0/166 |
2.6/164 |
3.1/162 |
3.7/158 | ||||
200 |
610 |
1.9/143 |
2.5/141 |
3.0/139 |
3.5/136 | ||||
600 |
541 |
2.1/127 |
2.6/125 |
3.0/124 |
3.5/122 | ||||
2000 |
475 |
2.2/112 |
2.6/111 |
2.9/110 |
3.4/109 | ||||
6000 |
357 |
2.0/85 |
2.3/84 |
2.6/83 |
2.9/83 | ||||
20000 |
303 |
1.9/72 |
2.2/72 |
2.4/72 |
2.6/71 | ||||
60000 |
228 |
1.6/54 |
1.8/54 |
2.0/54 |
2.3/54 | ||||
NYP52 NYP52A (原型號: NYP10 NYP10A) | 50 | 52 |
20 |
720 |
4.3/362 |
5.8/355 |
6.9/348 |
8.1/340 |
螺紋 Thread |
60 |
720 |
4.7/364 |
6.2/358 |
7.3/352 |
7.5/346 | ||||
200 |
610 |
4.6/309 |
5.9/304 |
6.9/300 |
8.0/294 | ||||
600 |
541 |
4.9/275 |
6.0/271 |
6.8/268 |
7.8/264 | ||||
2000 |
475 |
5.0/243 |
5.9/238 |
6.6/237 |
7.6/235 | ||||
6000 |
357 |
4.1/184 |
4.9/182 |
5.3/181 |
6.2/180 | ||||
20000 |
303 |
3.8/157 |
4.6/156 |
5.1/155 |
5.6/155 | ||||
60000 |
228 |
3.1/119 |
3.7/118 |
4.0/118 |
4.5/118 | ||||
NYP80 |
80 |
80 |
20 |
615 |
5.2/471 |
6.9/461 |
8.5/451 |
10.0/433 |
法蘭 Flange |
60 |
615 |
5.5/474 |
7.2/465 |
8.8/457 |
10.5/448 | ||||
200 |
544 |
5.7/421 |
7.2/414 |
8.6/408 |
10.1/401 | ||||
600 |
479 |
6.0/372 |
7.3/367 |
8.5/362 |
9.8/356 | ||||
2000 |
417 |
6.5/326 |
7.7/322 |
8.9/319 |
10.1/315 | ||||
6000 |
305 |
5.6/239 |
6.6/237 |
7.5/326 |
8.4/233 | ||||
20000 |
228 |
5.5/180 |
6.4/179 |
6.9/178 |
7.7/177 | ||||
60000 |
188 |
5.5/149 |
6.1/149 |
6.7/149 |
7.2/148 | ||||
NYP111 NYP111A (原型號: NYP30 NYP30A) |
80 | 111.4 |
20 |
615 |
6.7/660 |
9.2/647 |
11.2/634 |
13.6/622 |
法蘭 Flange |
60 |
615 |
6.9/664 |
9.4/652 |
11.5/642 |
13.9/631 | ||||
200 |
544 |
7.1/589 |
9.3/580 |
11.0/573 |
13.2/563 | ||||
600 |
479 |
7.3/521 |
9.5/514 |
11.1/508 |
13.1/502 | ||||
2000 |
417 |
7.7/455 |
9.7/450 |
11.0/447 |
12.7/442 | ||||
6000 |
305 |
6.9/335 |
8.4/332 |
9.4/331 |
10.6/328 | ||||
20000 |
228 |
6.3/251 |
7.5/250 |
8.2/249 |
9.2/248 | ||||
60000 |
188 |
6.2/209 |
7.1/208 |
7.6/208 |
8.5/207 | ||||
NYP160 |
100 |
160 |
20 |
600 |
8.9/930 |
12.1/916 |
15.3/902 |
17.5/888 |
法蘭 Flange |
60 |
600 |
9.4/935 |
12.6/922 |
15.8/910 |
19.0/898 | ||||
200 |
550 |
12.3/866 |
15.3/859 |
18.3/852 |
21.3/845 | ||||
600 |
480 |
10.2/754 |
12.8/747 |
15.4/740 |
18.0/737 | ||||
2000 |
355 |
9.1/560 |
11.1/556 |
13/552 |
15.1/548 | ||||
6000 |
319 |
10.0/505 |
11.7/502 |
13.5/500 |
15.2/497 | ||||
| NYP220 |
125 | 220 |
20 |
430 |
8.8/902 |
11.9/880 |
15.0/858 |
18.0/836 |
法蘭 Flange |
60 |
430 |
9.0/909 |
12.0/890 |
15.0/871 |
18.0/852 | ||||
200 |
355 |
8.5/753 |
11.1/739 |
13.7/726 |
16.3/713 | ||||
600 |
320 |
9.4/682 |
11.8/671 |
14.1/660 |
16.5/649 | ||||
2000 |
254 |
9.1/544 |
11.0/537 |
13.0/530 |
15.1/523 | ||||
6000 |
244 |
10.1/483 |
11.9/478 |
13.6/473 |
15.4/468 | ||||
20000 |
160 |
9.1/347 |
10.5/345 |
11.9/343 |
13.3/341 | ||||
60000 |
117 |
8.4/256 |
9.4/255 |
10.4/254 |
11.4/253 | ||||
| NYP320 |
125 |
320 |
20 |
430 |
13.0/1306 |
18.0/1270 |
22.0/1235 |
26.0/1200 |
法蘭 Flange |
60 |
430 |
13.0/1316 |
18.5/1285 |
22.0/1255 |
26.5/1225 | ||||
200 |
355 |
11.8/1091 |
15.5/1068 |
19.1/1046 |
22.8/1024 | ||||
600 |
320 |
13.2/987 |
16.5/968 |
19.7/950 |
22.9/932 | ||||
2000 |
284 |
14.2/881 |
17.4/867 |
20.6/854 |
23.8/841 | ||||
6000 |
222 |
13.7/693 |
16.2/684 |
18.7/675 |
21.2/666 | ||||
20000 |
168 |
13.2/529 |
15.3/525 |
17.3/522 |
19.4/519 | ||||
60000 |
125 |
12.0/397 |
13.7/396 |
15.3/395 |
16.9/394 | ||||
| NYP650 |
150 |
650 |
20 |
315 |
19.0/1921 |
26.0/1857 |
33.0/1794 |
法蘭 Flange | |
60 |
315 |
20.0/1940 |
26.4/1886 |
33.2/1832 | |||||
200 |
284 |
17.9/1756 |
24.0/1711 |
30.4/1666 | |||||
600 |
253 |
17.6/1572 |
22.7/1534 |
28.9/1500 | |||||
2000 |
196 |
15.7/1225 |
20.6/1201 |
24.5/1176 | |||||
6000 |
160 |
16.0/1008 |
19.8/993 |
22.3/978 | |||||
20000 |
117 |
13.6/745 |
16.5/738 |
19.2/731 | |||||
60000 |
100 |
15.0/645 |
17.2/643 |
19.5/640 | |||||
NYP727 (原型號: NYP50) |
150 | 727 |
20 |
315 |
21.5/2135 |
29.4/2058 |
37.3/1980 |
法蘭 Flange | |
60 |
315 |
22.4/2157 |
29.8/2090 |
37.3/2026 | |||||
200 |
280 |
19.6/1928 |
26.7/1874 |
33.5/1820 | |||||
600 |
245 |
19.6/1696 |
25.1/1652 |
31.2/1611 | |||||
2000 |
200 |
18.7/1394 |
23.3/1363 |
28.5/1334 | |||||
6000 |
170 |
19.2/1195 |
23.3/1175 |
27.9/1155 | |||||
20000 |
125 |
17.0/888 |
20.1/878 |
23.3/868 | |||||
60000 |
100 |
16.8/720 |
19.5/717 |
22.3/713 | |||||
| NYP1670 |
200 |
1670 |
20 |
250 |
38.0/3852 |
52.0/3690 |
66.0/3529 |
法蘭 Flange | |
60 |
250 |
40.0/3900 |
54.0/3763 |
68.0/3626 | |||||
200 |
225 |
37.5/3535 |
50.0/3424 |
62.5/3313 | |||||
600 |
195 |
37.0/3079 |
48.0/2990 |
58.6/2900 | |||||
2000 |
160 |
35.0/2547 |
44.0/2485 |
53.0/2422 | |||||
6000 |
135 |
34.6/2177 |
42.0/2138 |
50.0/2100 | |||||
20000 |
112 |
35.0/1830 |
41.5/1810 |
48.0/1790 | |||||
60000 |
85 |
36.0/1405 |
35.7/1400 |
40.6/1392 | |||||
